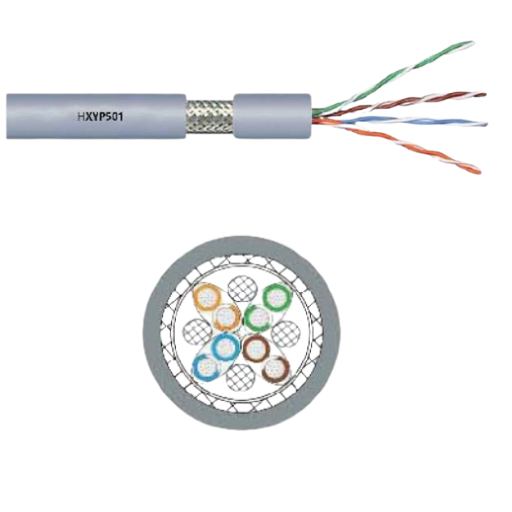

HXYP501 PUR Sheath Pair Twist Shielded Ultra Flexible Cable

Product Structure

• Conductor: Fine Strands Of Oxygen-Free Copper Wire, According To VDE0295 Class 6 Standard
• Insulation: TPU
• Wire Colors: Colored core wire (“digitally coded”) to DIN 47100
• Core Wire Structure: Anti-twist layered, optimized pitch and cable structure design
• Shielding: Tinned copper wire braided shield, density 80%
• Sheath Material: High-performance PUR (Suitable for drag chains)
• Sheath Colors: Black, gray

Applications:

• The product is designed to withstand an environment that is pervaded by motions of industrial bending, rotation, flexing and reciprocation.
• It can be used both indoors and outdoors, for example, on the drag chains of modern machinery as well as logistics systems, control systems, automatic machinery systems, CNC machines, etc.
• The product’s sheath has excellent abrasion resistance and anti-bending performance.
• This product is mostly used in cases with signal interference.
• Twisted pairs of wires can effectively reduce the signal interference between the neighboring wires, crossed or twisted with each other.
• The tinned copper wire shielding layer effectively resists external electromagnetic interference.
