Special Composite Reel Cable

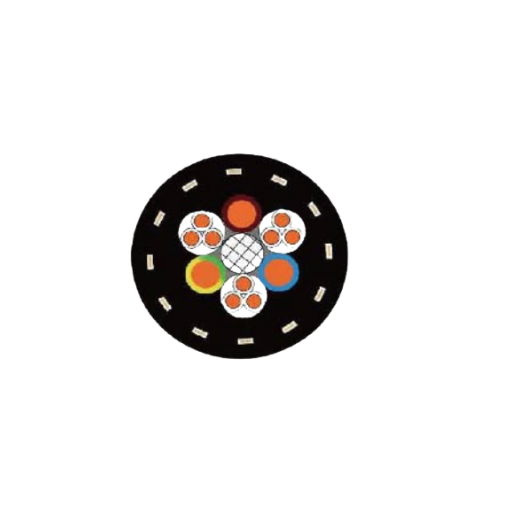

Product Structure

• Conductor: Fine strands of oxygen-free copper wire, according toVDE0295 class 6 standard (special bunching )
• Insulation: Special PVC or TPU
• Wire Colors: Colored core wire or Coded wires in accordance with VDE0293
• Core Wire Structure: best pitch and core stranding design for reel
• Shielded: Signal control cores use corrosion resistance copper mesh woven shielding
• Inner Sheath: Nitrile(PUR optional)
• Strengthen: High-strength aramid yarn braiding
• Sheath Material: High strength and abrasion resistance PUR
• Sheath Colors: Black.Yellow
• Reference Standard: VDE0295: HD.21

Applications:

Special composite reel cables find use in large scale lifting and hoisting sites, waste incineration and power plants, large scale logistical centers and port terminals, etc. These cables are optimized for controlling and electrically connecting gantry cranes and large lifting devices.
